India’s Breakthrough

KAVACH – The Indigenous SIL 4 Signaling System

KAVACH is the Automatic Train Protection (ATP) system developed under Make in India by Indian Railways. It is a SIL 4-compliant, microprocessor-based safety solution aimed at preventing train collisions, overspeeding, and signal passing at danger (SPAD).

With KAVACH, India joins the global league of nations deploying indigenously developed SIL 4 ATP systems, delivering safety, affordability, and scalability across the vast Indian Rail network.

SIL 4 (Safety Integrity Level 4) is the highest international standard for functional safety in railway signaling systems, defined under IEC 61508 and CENELEC EN 50126/50128/50129. A system certified to SIL 4 must demonstrate a probability of dangerous failure below 10⁻⁸ per hour, ensuring near-zero risk in mission-critical rail applications.

SIL 4 systems are vital for Automatic Train Protection (ATP), collision avoidance, and fail-safe train operations.

Key Objectives of KAVACH

Prevent head-on, rear-end, and SPAD collisions

Enforce permanent and temporary speed restrictions
Automatically apply brakes in unsafe conditions
Support loco-to-loco and loco-to-station communication
Operate reliably in diverse Indian terrains and climatess

Technical Architecture of KAVACH System

Onboard Equipment (OBE) : Installed in locomotives to receive data from trackside systems and intervene in train operations

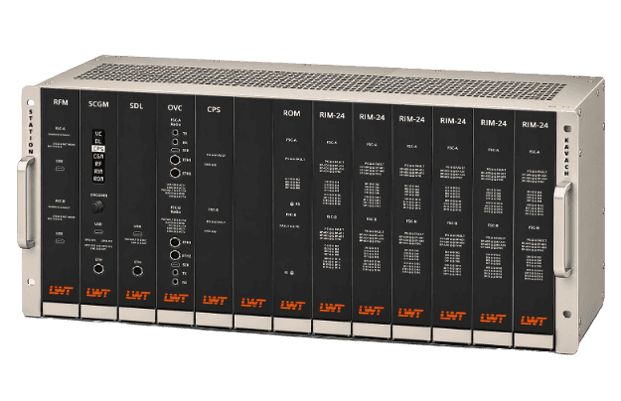

Station Equipment (SE) : Interfaced with interlocking, manages signal aspects and train movement authorities

RFID Tags : Placed along tracks for precise train localization and positional feedback

Trackside Units (TSU) : Communicate real-time data to OBEs on speed limits, signal status, and location

Radio Communication Network : Enables Loco-to-Loco and Loco-to-Station safety communication

Centralized Safety Server (CSS) : Monitors all movements, logs events, and ensures redundancy and audit trails

Safety Mechanisms

Continuous Brake Enforcement
KAVACH automatically applies brakes if the driver fails to act in unsafe conditions (SPAD, overspeed).

Fail-Safe Design
All logic follows positive logic fail-safe principles, ensuring default to safety in any failure.
Time Synchronization
All units operate in coordinated time cycles (using GPS and IRNSS).
Cybersecurity Protection
All wireless and wired communication is encrypted and authenticated per SIL 4 protocol standards.

KAVACH is SIL 4 Certified

All hardware and software components have been evaluated per CENELEC EN 50126 / 50128 / 50129

Hazard Analysis and Risk Assessment (HARA) and Failure Modes and Effects Analysis (FMEA) completed
Validated by independent safety assessors (ISA) such as RDSO and global agencies

Operational Capabilities and Use Cases

Performance in Indian Railways Environment
KAVACH is battle-tested in Indian Railways, covering high-speed corridors, suburban networks, and freight routes. It has demonstrated reliability in:

Extreme temperature zones (-10°C to +60°C)
Dusty, high-humidity, and heavy rainfall zones
Mixed traffic operation (passenger, freight, and suburban)
Legacy and modern locomotives (WAP, WAG, WDP series)

Advanced Features

Loco-to-Loco Communication for dynamic braking in rear-end collision prevention

Speed Profiling and Advisory for terrain-specific braking and acceleration
Real-Time Event Logging for diagnostics, training, and post-incident analysis
Self-Test and Health Monitoring for every subsystem with diagnostics at OCC and remote level

Compatibility

Compatible with Electronic and Relay Interlocking systems

Interfaces with existing and new Train Management Systems (TMS)
Upgradeable to future CBTC and ETCS L2 overlays
Future Outlook, Benefits, and LWT Competency

Why KAVACH is a Game Changer for Indian Railways

Reduces Human Error-Driven Collisions by 90%

Costs 1/3rd of imported ATP systems
Enables faster, safer, and higher-capacity train operations
Supports Indian Railways’ target to eliminate all major collisions by 2030
Aligned with National Rail Plan and Vision 2047
LWT Competency in SIL 4 Signaling Systems
Lotus Wireless Technologies is one of the few Indian companies with full-stack capability to design, integrate, deploy, and support SIL 4-compliant signaling systems aligned with KAVACH and CENELEC standards.
