Customized Defense Products
Customized Defense Products
25 km
Control Range
IP67
Protection Rating
10,000
Event Logs
100
Waypoints
Customized Defence Products
Customized solution provider for Defence Applications. With in House Design, Engineering, Manufacturing and Testing Capabilities
Lotus Wireless Technologies strive to work with customers to meet their demanding requirements.

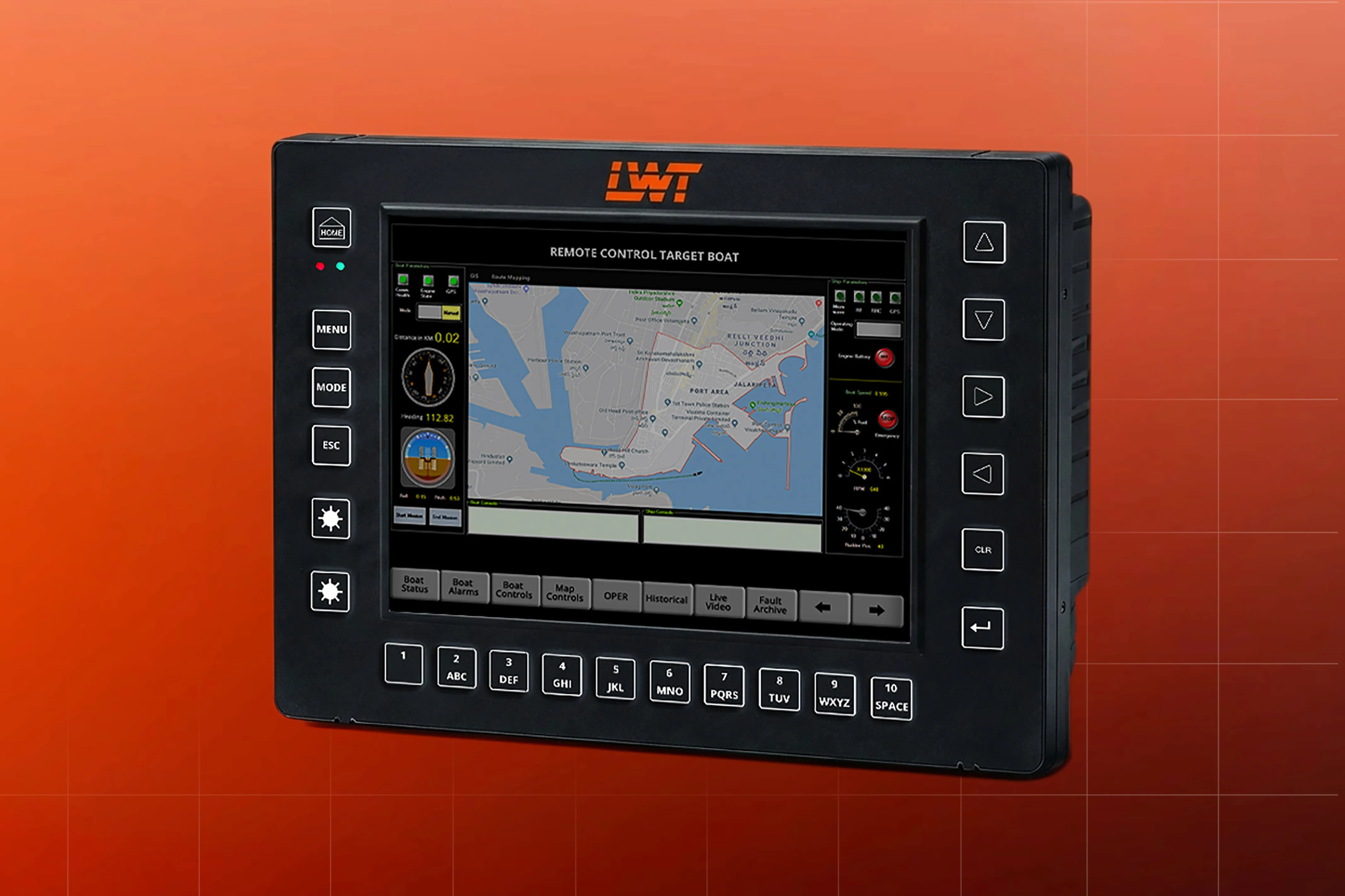

Military Grade
Water Proof Rugged HMI
HMI Engineered to withstand challenging and abusive environments.
10.4 /12.1” Wide Aspect Ratio LED Display
Upto 1920 X 1080 (HD) Native Resolution
Ultra-Low Latency Controller
Full MTL-DTL-38999 Connectors
IP- 67 Design For Dust And Liquid Protection
Durable Machined-Aluminum Design
Video and Audio Input / Output
Viewing Angle 160° (H)/140° (V)
Sunlight-readable and UV Protective Displays
Functional keys embedded in the metal body.
Does not required supplemental Cooling arrangements.
USB 2.0 Interface
MIL-STD-3009 Dual Mode Led Backlight

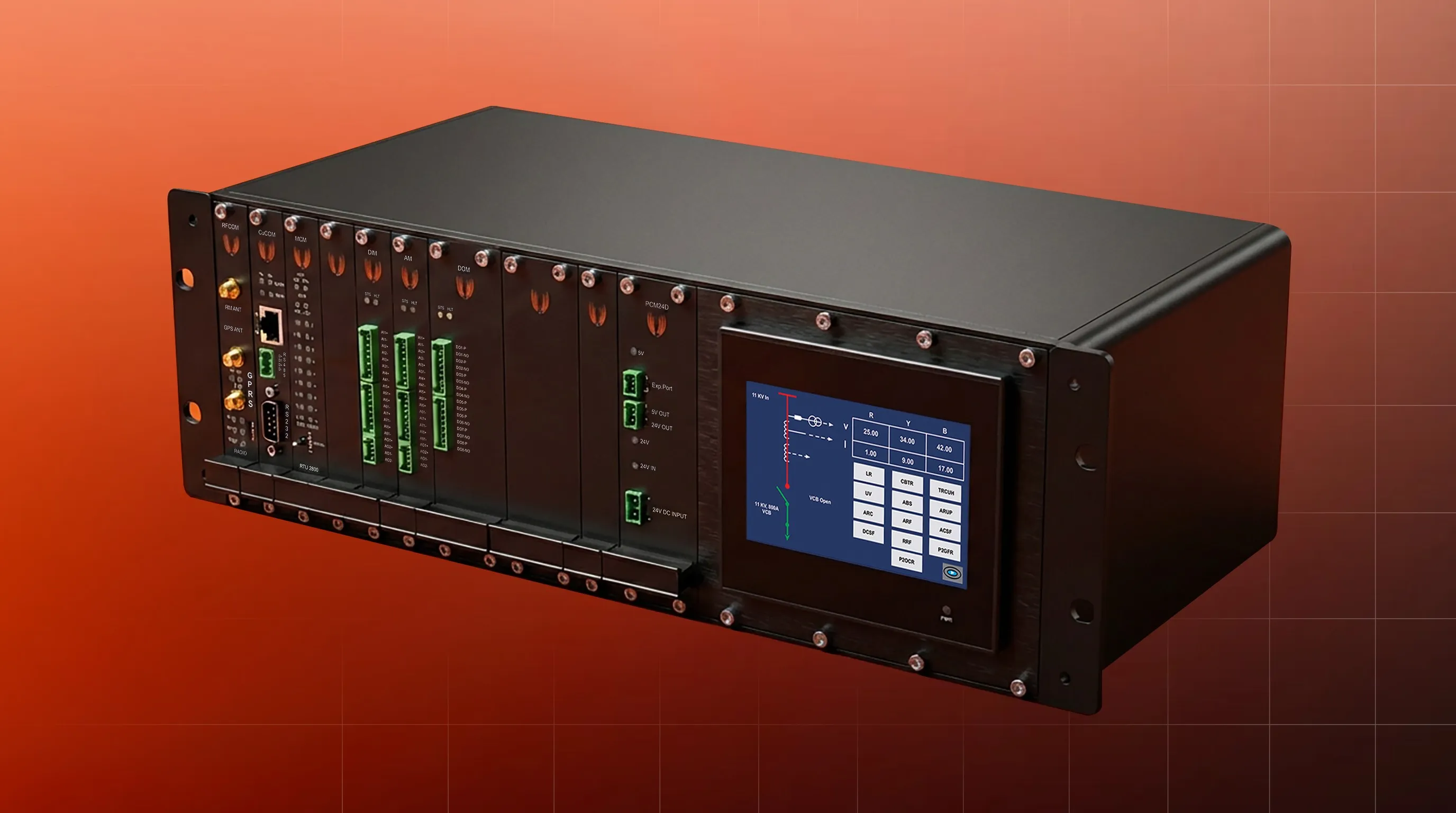

Remote Terminal
Unit RTU 2800
Remote Terminal Unit RTU 2800 Stands as one of the most scalable platform in the industry with a large option of data connectivity for diverse requirement, enabling scalable telemetry, automation and communication network on open Protocols.
Key Features of DCU 860
Remote communication over serial, ethernet and wireless technologies, local/remote operation
Multi protocol support
10,000 event storage, 1 msec scan time with time stamp for all I/O’s
Inbuilt protocol conversion capabilities, remote configuration, built in touch screen for local display
Time synchronization using Built-in GPS
Scalable system for expanding communication ports and I/O Modules
Pluggable GPS/GPRS Connectivity and RF Modem
Suitable for Large scale Integrated Platform control

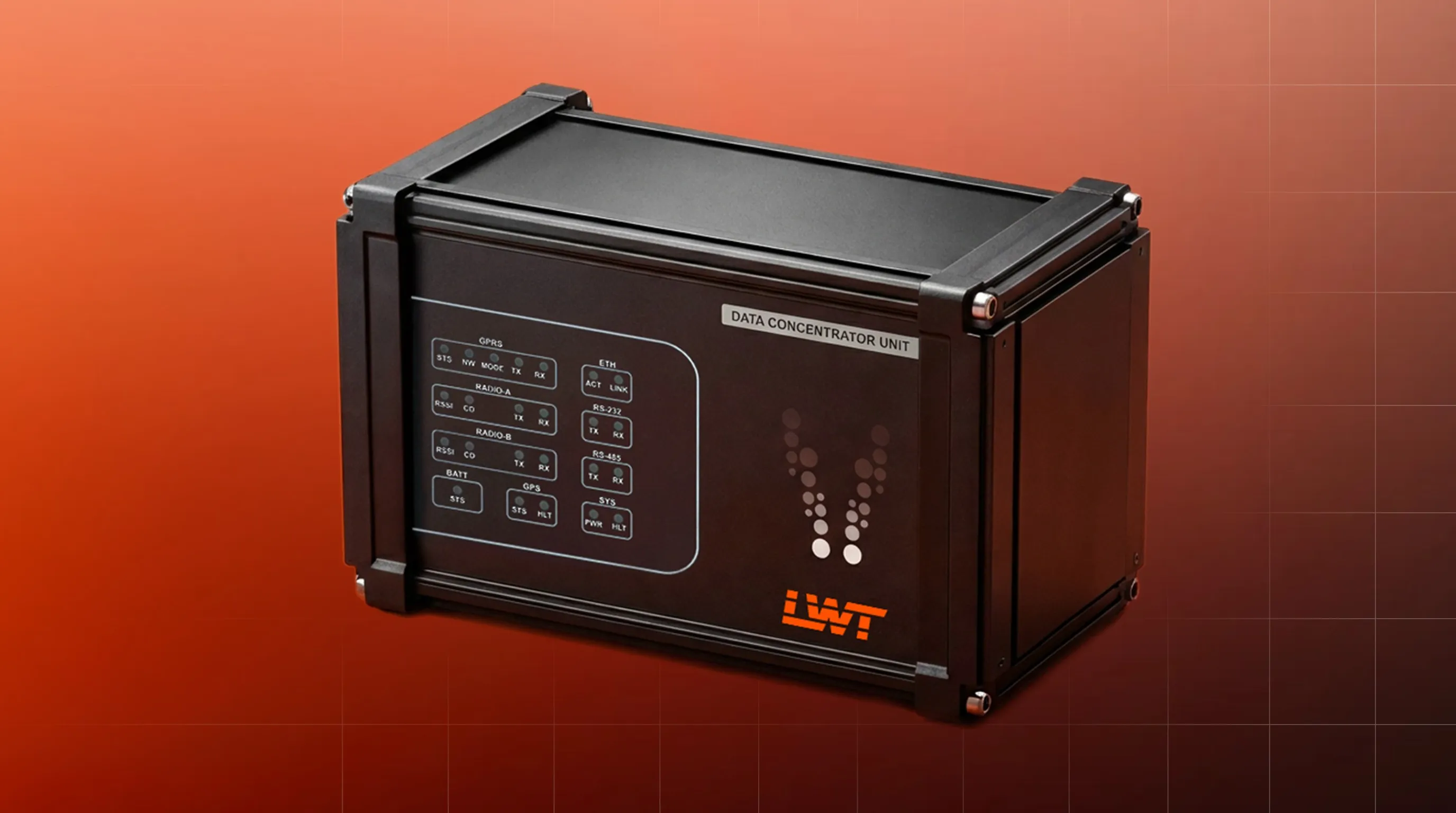

Data Concentrator
Unit DCU 8600
DCU 860 brings Industrial Grade very advance communication platform for the field data collection application. DCU860 comprises of a redundant 865-867 Mhz UHF RF modem enabled with Optimesh Protocol along with Wifi, GPS, 3G modem with Optional Fibre Optical Interface The system comes with battery backup for 6 Hours of power failure and is IP67 packaged for an all weather operation.
Key Features of DCU 860
Canopy Type Router based RF Mesh Network
UHF Radio With Antenna And Polarization Diversity On Opti-Mesh Protocol
Built In Redundant Radios For Multiple Networks
Built In 3G Modem For High-Speed Cloud Connectivity
Battery Backup
Multiple Protocol Support
Network Management. On Board 10/100 Mbps Fast Ethernet Controller
Self-Healing And Auto Routing Capabilities
Store, Manage And Forward Capabilities
In-Built Protocol Conversion Capabilities
Military Grade
Rugged Control System

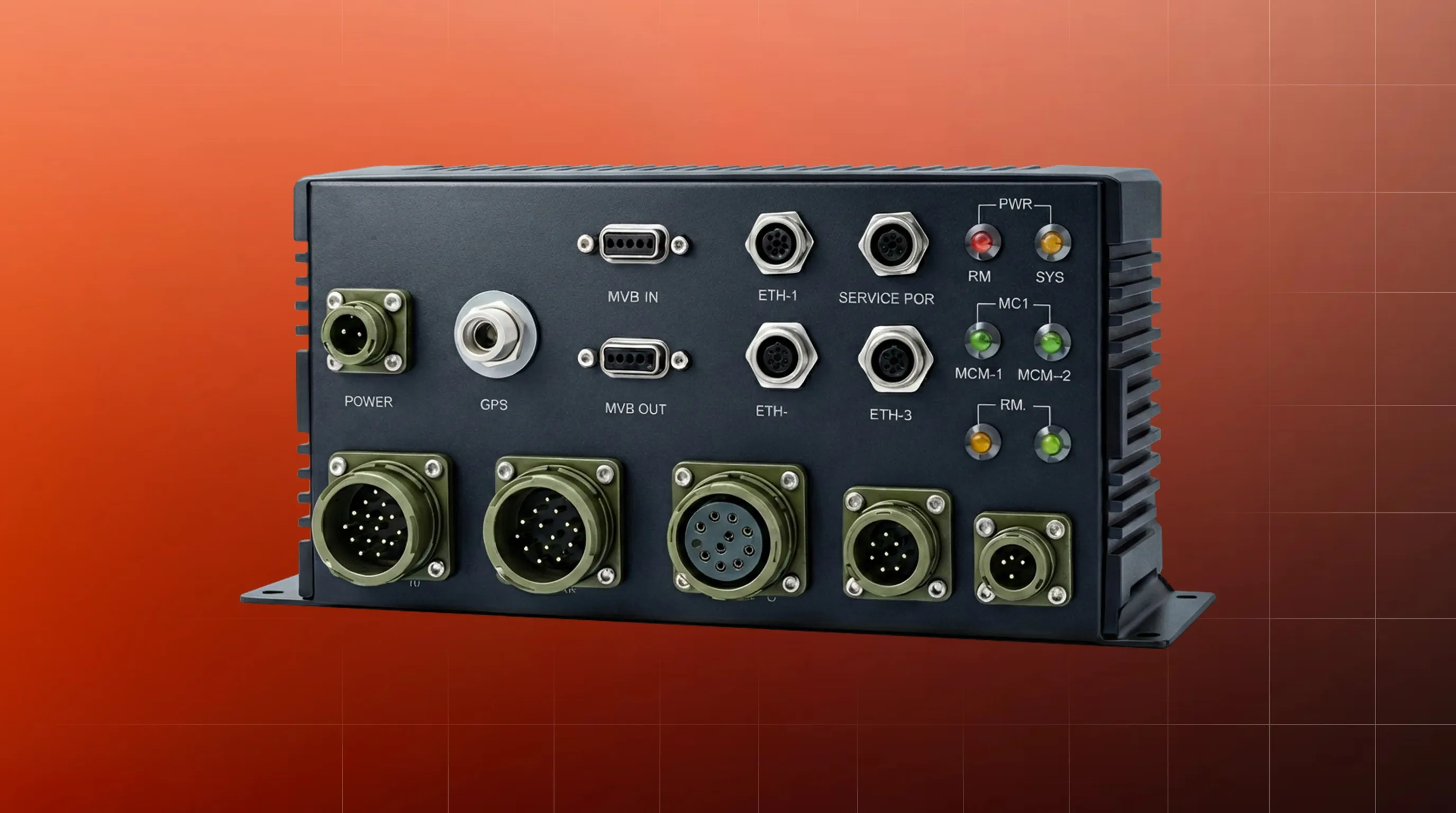

Custom designed rugged computer system for ground and mobile applications.
Low Power High Performance MPU with 1GHz Clock Speed
Rugged, IP67 Environmentally Sealed System
Compliance with MIL-STD-810
Interfaces: USB 2.0, Ethernet, Serial (RS232/422/485) & CAN
Digital Inputs with customizable input voltages
Galvanic Isolated Analog Inputs and Outputs
12/16/24 bit Analog inputs and Analog Outputs
Potential free Digital Outputs
Construction: Heavy Duty Aluminum Chassis
MIL-STD-901D (High Shock)
MIL-STD-810F (Environmental)
MIL-STD-461E (EMI/RFI Emissions)
MIL-STD-167B (Vibration)
MIL-STD-740B (Airborne and Structure borne Noise)
UL 60950 (Electrical Safety)
FCC Part 15 (Commercial EMI/RFI Emissions)

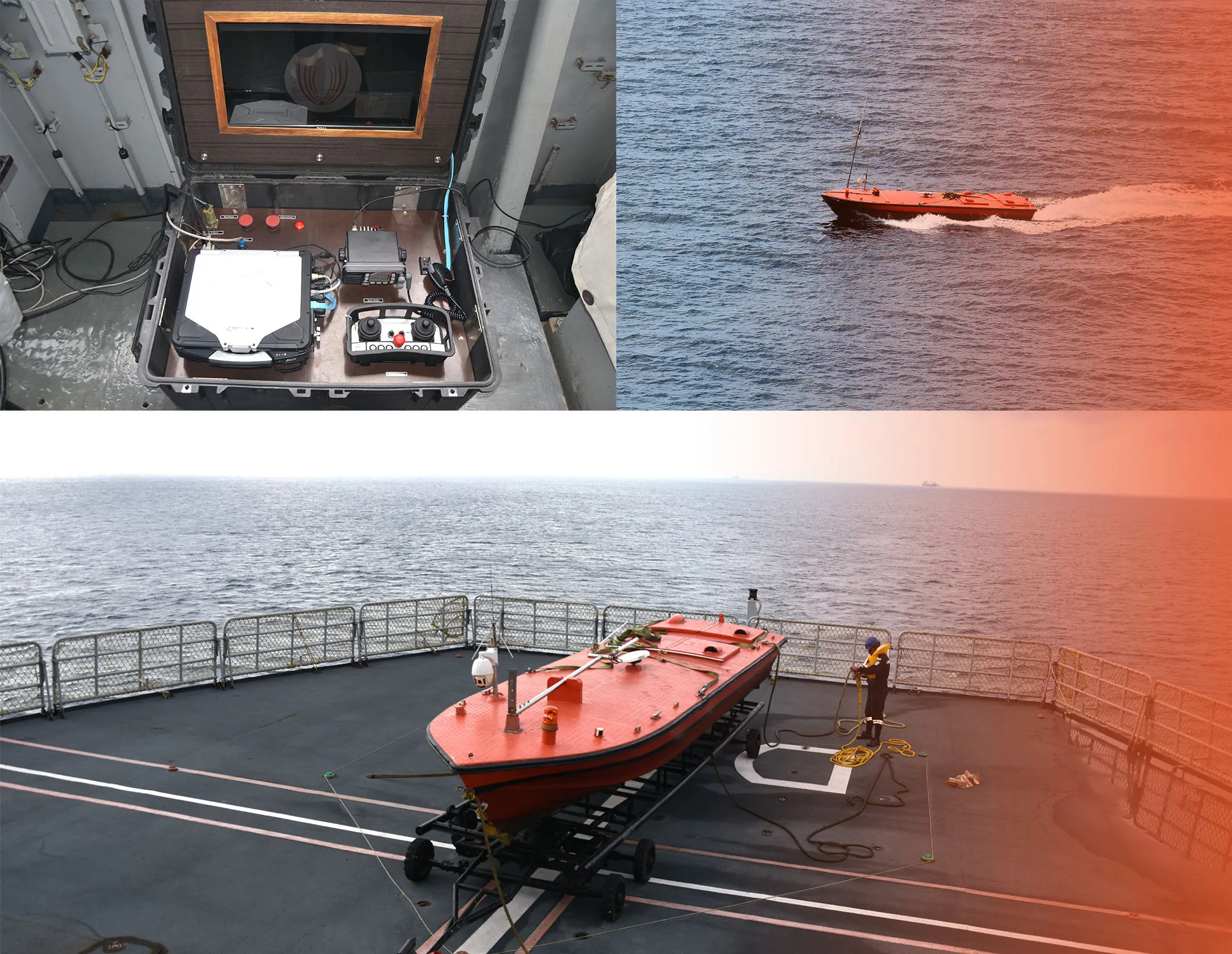

Remote Controlled
Target Boat
The Remote Controlled Target Boat (RCTB) is used in naval gunnery training, weapons testing and ship command and control assessments. These boats are autonomous and remotely controlled, and their use eliminates risks to personnel and equipment. Our broad Scope of work was supply of engine , design, engineering and supply of complete electrical and communication control system to Indian Navy working under sea state level III
Key Features of DCU 860
The Remote Control Station is located in the ship from where the RCTB is operated. The status information of the RCTB is available via telemetry for the relative position in bearing and range with respect to the control station, course and speed of RCTB, engine RPM and motion and fuel status.
A Remote Terminal Unit is used to control steering, speed, and engine starting and stopping. The boat is controlled by radio link with the operation distance of up to 25km. The radio control is not affected by the radar, radio transmission or ships stationed within its operating range.
RCTB has a GPS and a flux gate compass for navigation. It also has a programmable autopilot for setting up to 100 waypoints and steering the boats:
Individual precise operation from remote control
Following prescribed waypoints according to the mission plan
Bringing back the boat to a preset position in case of loss of command link with remote controller
